November 11, 2025 at 11:22 am #647Placeholder: Option 1
Faction: SADF / SANDF
“Rooikat” The African CaracalThe Rooikat, which means “Caracal” or “Red cat” in Afrikaans, is a South African armoured reconnaissance vehicl
Faction: SADF / SANDF

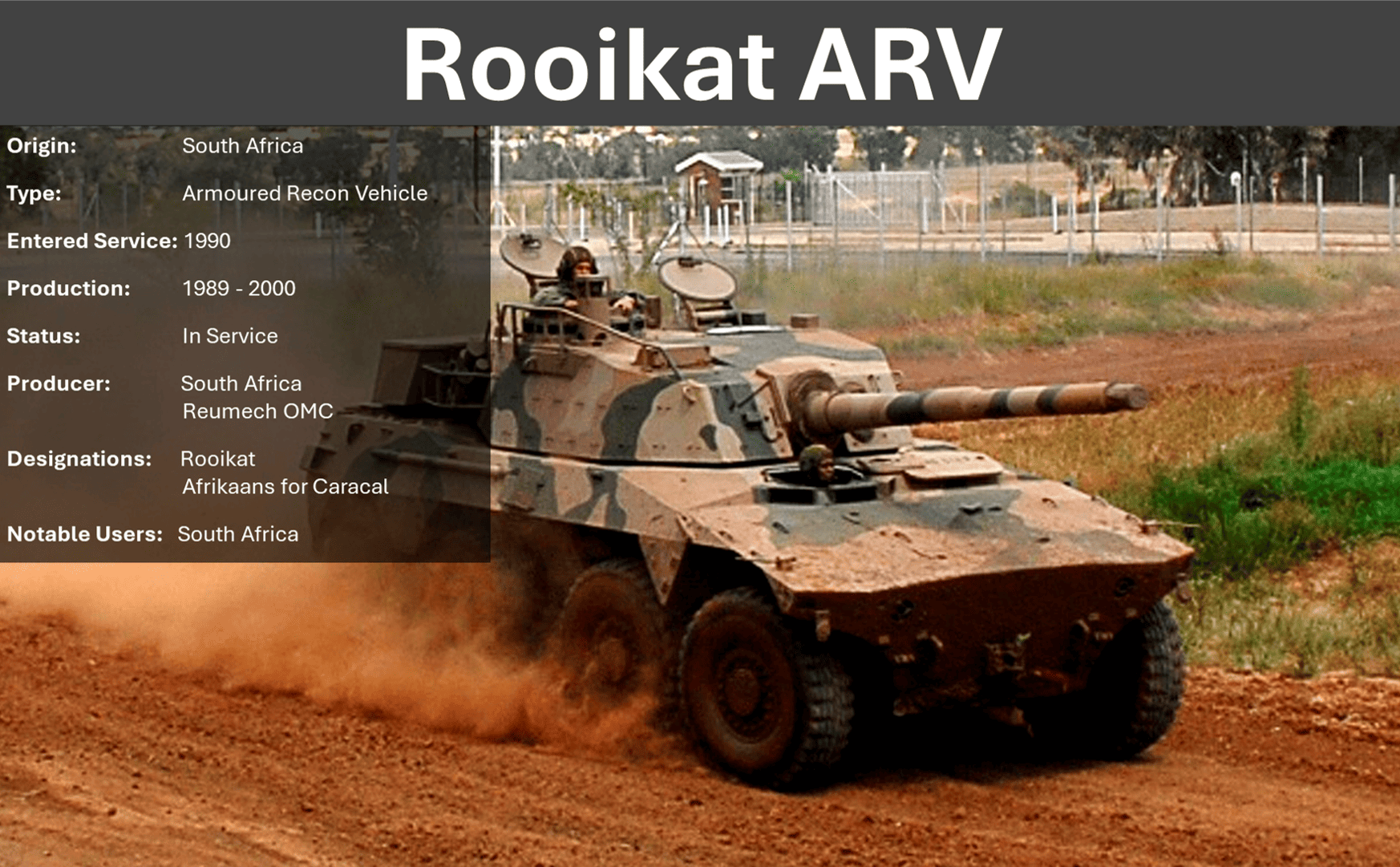

“Rooikat” The African CaracalThe Rooikat, which means “Caracal” or “Red cat” in Afrikaans, is a South African armoured reconnaissance vehicle designed primarily for anti-tank and fire support roles. It features a stabilised 76 mm high-velocity gun based on the Oto Melara 76 naval gun and has been in service with the South African National Defence Force (SANDF) since 1987. Development began in the mid-1970s as part of the New Generation Armoured Car project to address the limitations of earlier vehicles like the Eland-90, which were inadequate against tanks during operations such as Operation Savannah in 1975 and Operation Askari in 1984. After testing several prototypes, the Cheetah Mk2 was selected in 1984 and renamed Rooikat, with production starting in 1987 and mass production in 1990.
Origin South Africa Type Armoured Fighting Vehicle Entered Service 1987 Production 1987-2020 Status In Service Producer Sandock-Austral Designations Rooikat Afrikaans -after the Caracal Notable Users South Africa A. General
Origin:South AfricaType:Armoured Fighting VehicleCrew:4B. Dimensions
Weight:28 tonnesLength:7.1 mWidth:2.9 mHeight:2.8 mC. Chassis
Chassis type:WheeledSuspension:8×8 wheeled configurationD. Automotive
Engine:10 cylinder water-cooled turbo dieselPower Output:420 kWTransmission:AutomaticE. Mobility
Road Speed:120 km/hOff Road Speed:60 km/hRange:1000 km (road)F. Protection
Armor type:SteelArmor thickness:Protects against small arms and shell fragmentsNBC Protection:YesG. Main Armament
Type:76 mm GT4 gunCoaxial:7.62mm co-axial MGAmmunition:48 rounds (main gun), 3600 rounds (coaxial MG)
H. Secondary Armament
Type:7.62mm GPMG on commander’s cupolaType:8 × 81mm smoke grenade launchers-
